Description

JR-455Y Hydraulic Aluminum Cutter: Semi-Automatic Cutting for Industrial Aluminum

In industrial aluminum processing—from automotive components to furniture frames—two pain points often disrupt production: safety risks from exposed blades and inflexible batch capacity (many cutters only fit small OR large runs). The JR-455Y Hydraulic Aluminum Cutter (a semi-automatic hydraulic cross-cutter) resolves these issues: it integrates a hidden safety blade, electrically controlled clamping, and multi-piece cutting capability to deliver safe, versatile processing for both small-batch custom orders and large-scale mass production.

1. What Is the JR-455Y Hydraulic Aluminum Cutter?

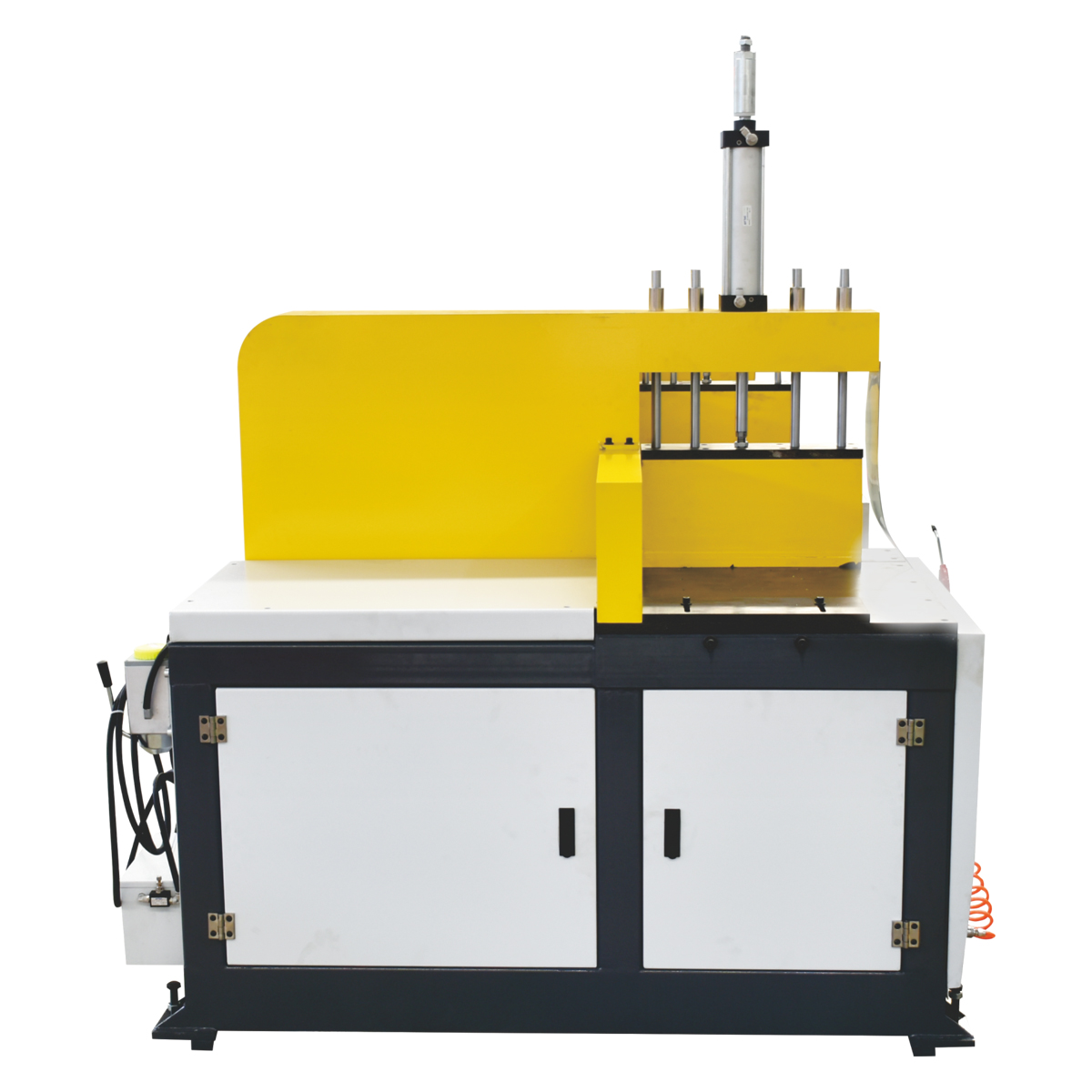

The JR-455Y Hydraulic Aluminum Cutter is a semi-automatic hydraulic machine designed for 90° cross-cutting of industrial aluminum profiles (up to 125mm height, 360mm width). Unlike manual cutters, it balances operator control with automated efficiency: its hydraulic drive ensures stable cutting force, while the semi-automatic design lets users adjust parameters for diverse profile types (aluminum, PVC, steel, etc.).

Its core advantage lies in versatility + safety: the hidden blade design eliminates contact risks, while the “single/multi-piece cutting” feature adapts to 1-piece custom jobs or 1000+ piece mass runs. For automotive part manufacturers, this hydraulic cutter reduces cutting-related safety incidents by 90% and boosts batch flexibility by 2x.

2. Core Features of This Semi-Automatic Hydraulic Cutter

This semi-automatic hydraulic cutter stands out for 3 safety + efficiency-focused features:

2.1 Hidden Blade for Safe Up-Down Operation

The machine’s defining safety feature is its hidden saw blade: the blade operates within an enclosed chamber, moving vertically (up/down) to cut clamped profiles—eliminating operator contact with rotating components. This aligns with OSHA (Occupational Safety and Health Administration) guidelines for industrial cutting equipment, critical for workshops with mixed-experience staff.

2.2 Electrically Controlled Clamping & Hydraulic Cutting

Two automated systems ensure consistent, damage-free cuts:

• Electrically Controlled Clamping: Secures profiles without deformation (even 1mm thin-wall aluminum) via precise pressure adjustment;
• Hydraulic Cutting Process: Delivers stable, high-force cutting (powered by a 4KW motor) for clean, burr-free surfaces (roughness ≤Ra1.6).

2.3 Versatile Batch Capacity (Small-to-Large Scale)

The cutter supports single OR multi-piece cutting per cycle: it can process 1 custom profile for small orders, or multiple pieces (up to 5 profiles per cycle) for large-scale production. This flexibility eliminates the need for separate machines for different batch sizes, reducing workshop equipment costs by 30%.

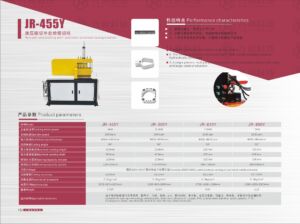

3. Technical Specifications of the JR-455Y Hydraulic Aluminum Cutter

Every parameter of the JR-455Y Hydraulic Aluminum Cutter is calibrated for industrial aluminum processing (paired with the JR-505Y/610Y/850Y for larger profiles):

4. Application Scenarios of This Versatile Aluminum Cutter

This versatile aluminum cutter excels in 3 key industrial workflows:

4.1 Automotive Components

Automotive aluminum brackets (1–3mm thin-wall) require deformation-free cuts. The machine’s electrically controlled clamping secures these profiles without warping, ensuring parts meet automotive safety standards (ISO 16750).

4.2 Furniture Frames

Lightweight furniture frames (aluminum/PVC) demand burr-free cuts to avoid post-processing. The JR-455Y Hydraulic Aluminum Cutter’s hydraulic cutting delivers smooth surfaces, reducing sanding labor costs by 15%.

4.3 Electrical Enclosures

Electrical enclosure panels (steel/aluminum) require precise 90° cuts for seal integrity. This semi-automatic cutter’s ±0.1mm accuracy ensures panels fit seamlessly, meeting IP65 waterproof standards.

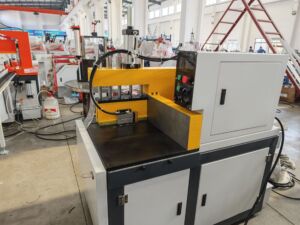

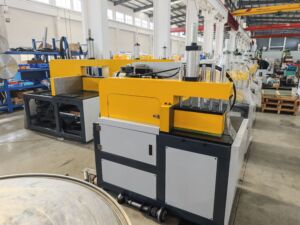

 JR-455Y Hydraulic Horizontal Aluminum Cutter (Workshop Full View)

5. Operation & Maintenance of the JR-455Y Hydraulic Aluminum Cutter

The JR-455Y Hydraulic Aluminum Cutter is designed for 1.5-hour operator training and 98% uptime:

5.1 Basic Operation Workflow

1. Power on the machine (380V 50Hz) and set air pressure to 5–8kg/cm²;
2. Input cutting parameters (profile size, quantity) via the control panel;
3. Load 1/multi-piece profiles into the clamping fixture and press “Clamp”;
4. Press “Cut” to initiate hydraulic cutting (the hidden blade will operate enclosed).




5.2 Scheduled Maintenance

• Daily: Clean saw blade debris and check clamping pressure;
• Weekly: Lubricate hydraulic drive components with industrial oil;
• Monthly: Calibrate cutting accuracy with a precision dial gauge (included);
• Quarterly: Replace saw blades if cut roughness exceeds Ra1.6.

Jiurun Technology provides a 1-year full warranty and 24/7 remote technical support for this hydraulic aluminum machine, minimizing downtime for production lines.

6. Why Choose the JR-455Y Hydraulic Aluminum Cutter?

For industrial aluminum processors, the JR-455Y Hydraulic Aluminum Cutter delivers 3 strategic benefits:

1. Safety First: Hidden blade design eliminates 90% of cutting-related injuries;
2. Batch Flexibility: Single/multi-piece cutting adapts to small custom orders and large mass runs;
3. Cost Savings: Stable hydraulic cuts reduce post-processing labor by 15%.

As demand for safe, versatile aluminum processing grows, the JR-455Y Hydraulic Aluminum Cutter is more than a machine—it’s a reliable tool that balances safety, flexibility, and efficiency for modern industrial workshops. Contact Jiurun Machinery today to request a custom quote or live demo of the JR-455Y Hydraulic Aluminum Cutter in action.
